Configuration checklist

Verify your SonarQube™ server settings in global settings of Bitbucket (Bitbucket Admin → Include Code Quality)
Run SonarQube™ source code analysis for main branch in your build system
1. Check the configuration for the source code analysis

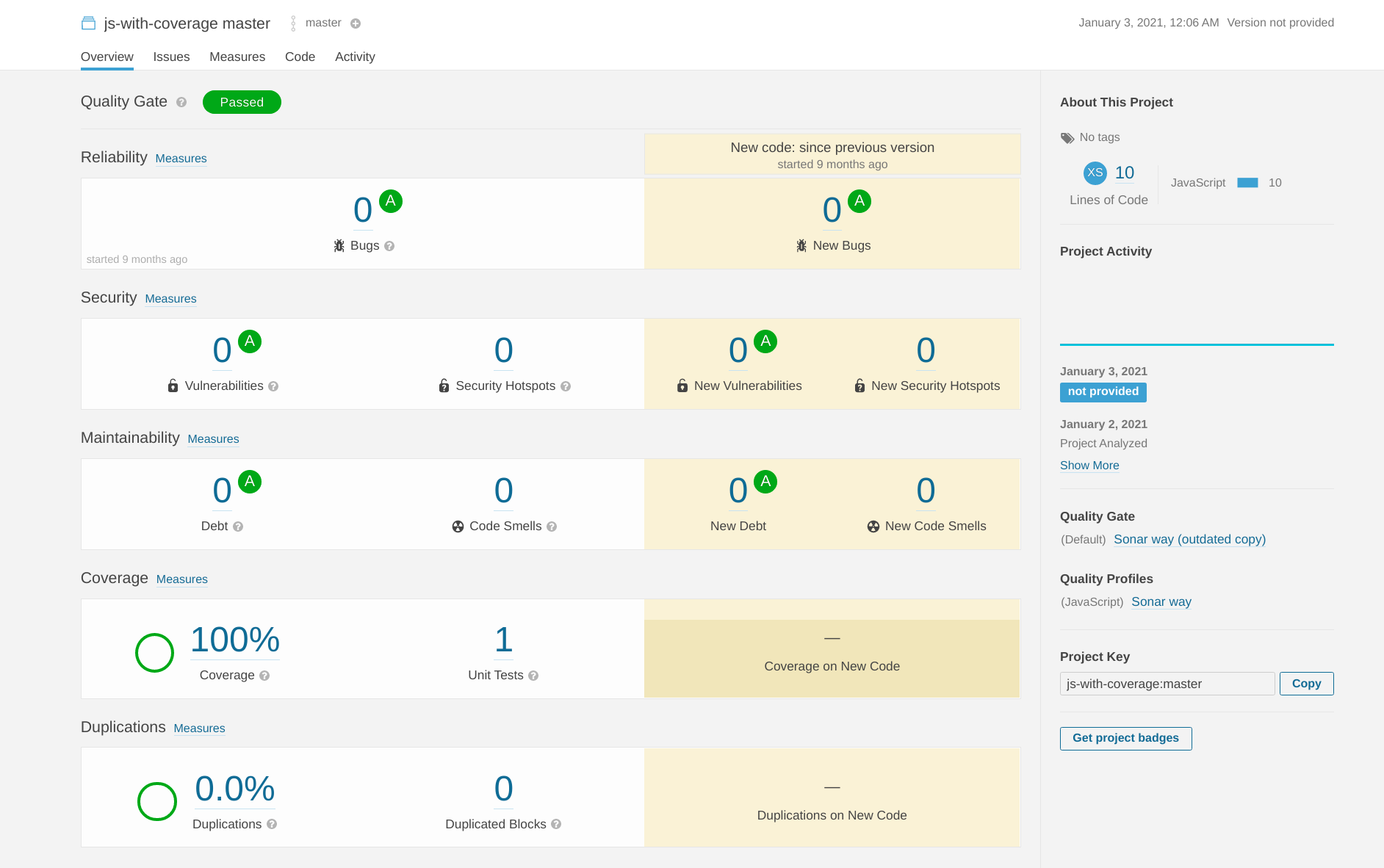

2. Check that the analysis results are visible in SonarQube™
Check the configuration of the corresponding SonarQube™ project in the repository settings in Bitbucket
Go to source code view in your Bitbucket repository and check if you can see the existing issues/stats

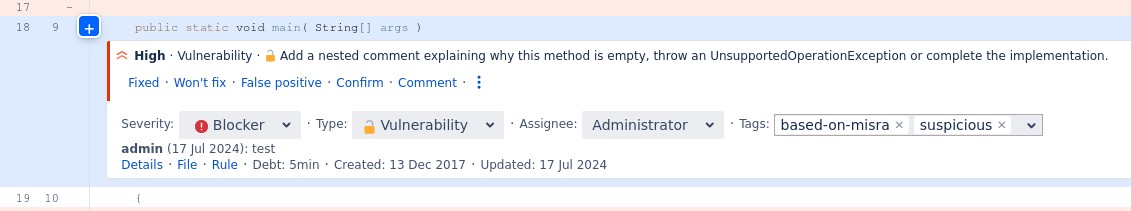

1. You should see the SonarQube™ statistics and issue annotation
2. Statistics and annotations are missing? Verify your Bitbucket repository configuration:
  1. Did you configure the correct analysis directory?
  2. Does the SonarQube™ project key match with the configuration in Bitbucket?
Create a pull request with issues in the code
In your build system, check that the pull request creation did trigger a SonarQube™ source code analysis for the source branch of your pull request

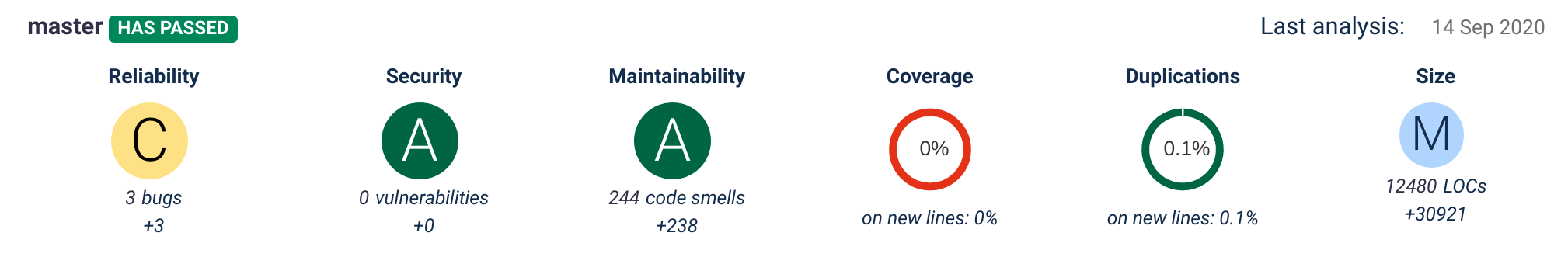

Go to the pull request view in Bitbucket and check if the analysis results are visible. You should see a quality gate status overview, and issue annotations in the pull request diff
1. An error ‘Quality gate status unknown’ hints at a wrong analysis configuration or a wrong analysis directory setting, or a SonarQube™ server that cannot be reached
2. An error ‘No active projects’ means that none of the configured project mappings map to a folder of the changed files in the diff.
3. No issue annotations:
  1. Verify that you can see the issues that should be shown in SonarQube™
  2. Do the issue annotations appear after clicking “Code Quality: Refresh Report” in the pull request context menu? Then check your Webhook configuration
